m-VROC II

The m-VROC II excels at early sample characterization and candidate screening. It features the smallest sample volume to date, integrated temperature control wide shear rate and temperature sweeps, and sample retrieval and recovery functionality.



Key features:

  • Smallest sample volume: Measures samples as little as 10 μL.
  • Extreme shear rates: Shear rates from 5,000,000 s⁻¹
  • Temperature control: Built-in temperature control of 4°C up to 100°C ensures stable, accurate data.
  • Sample retrieval: Save precious sample by testing and retesting using sample retrieval and recovery.
  • Automated cleaning: Free up user time to focus on data,analysis, & experimentation with the companion chip cleaning station.
  • Shear rate and temperature sweeps: Fully automated wide rang sweeps.
  • Extensional viscosity: Accurately measure combined shear and extensional viscosity to further characterize sample behavior.

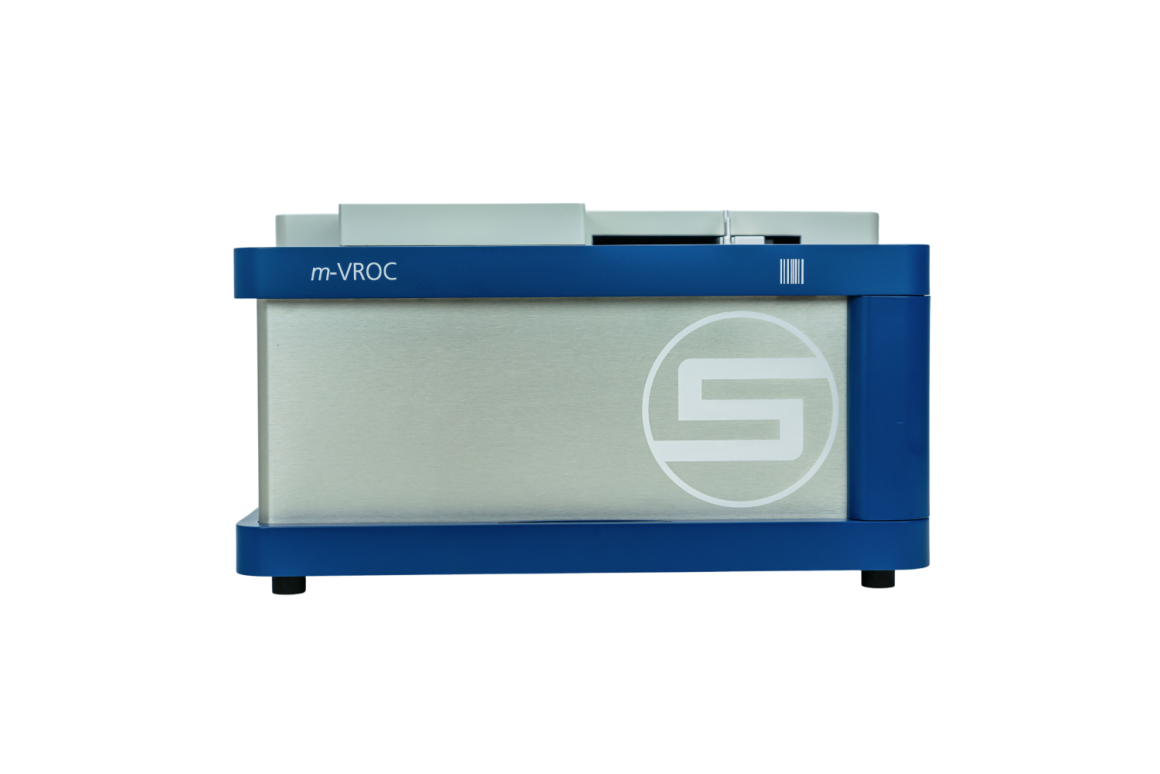

m-VROC_II_Front

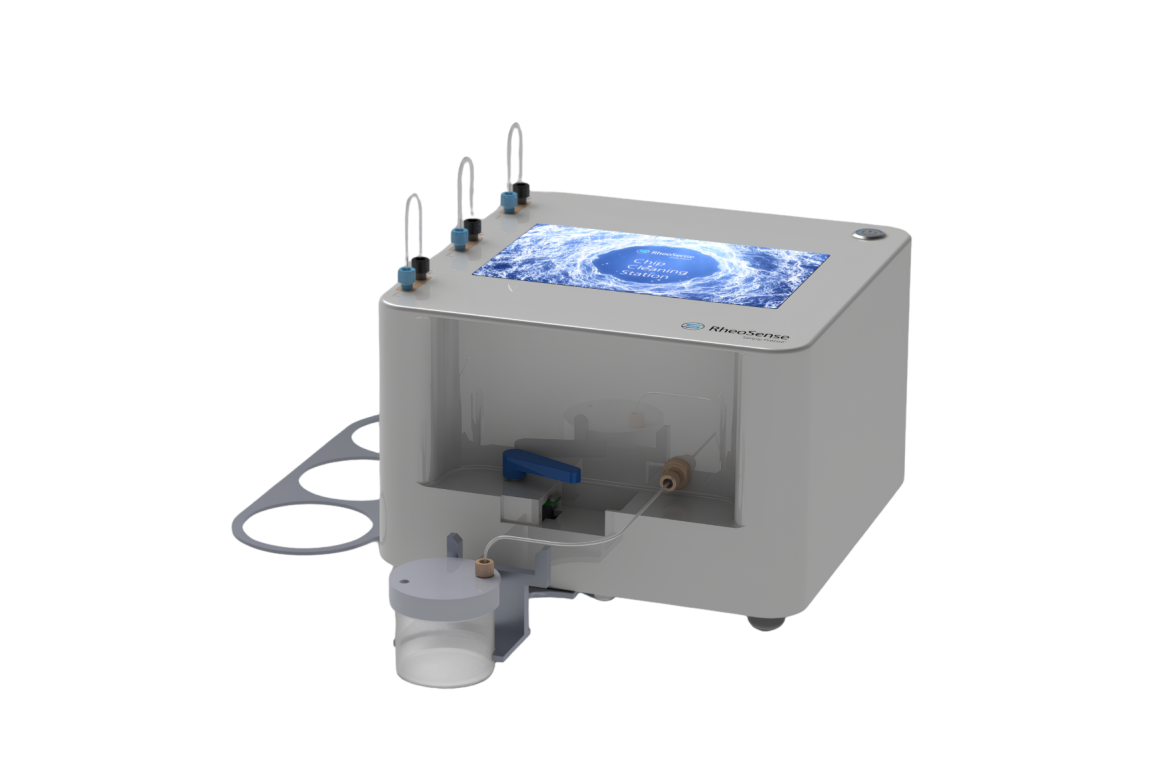

m-VROC_II_CCS

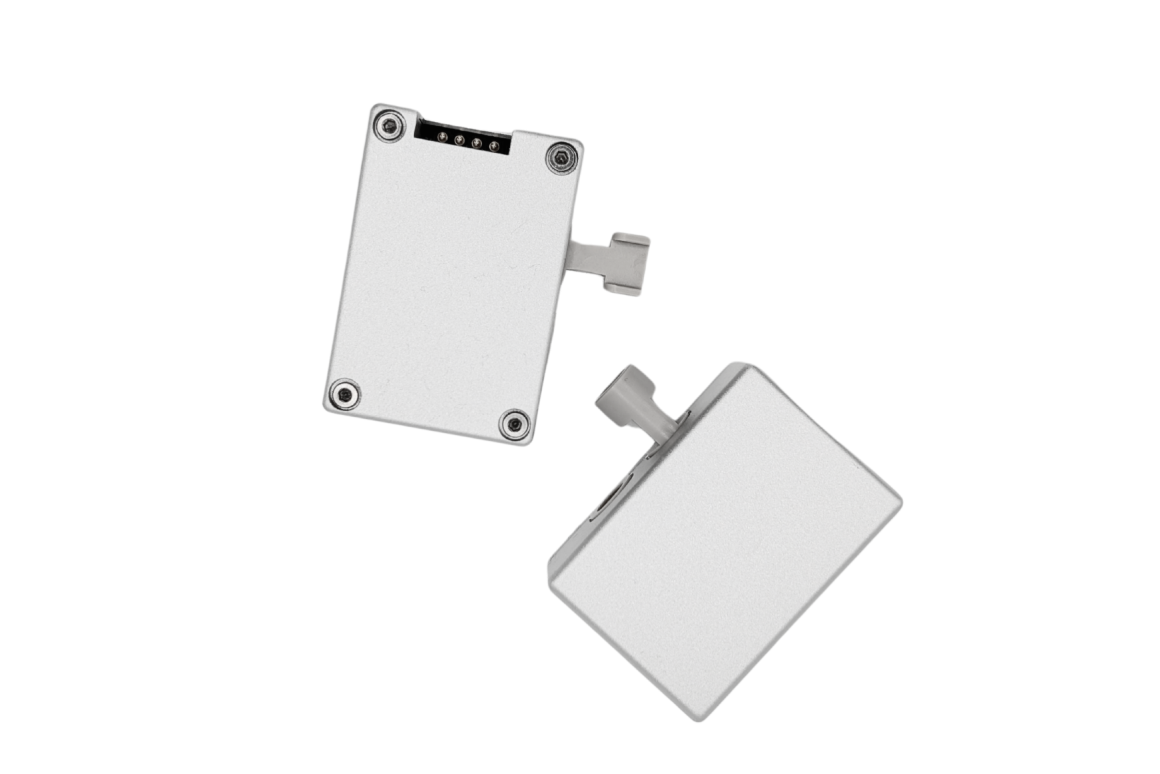

m-VROC_II_Chip_Setup

Product Specifications

m-VROC_II_Front
  • Shear Rate Sweep - 2 ~ 5,000,000 1/s
  • Temperature Sweep
  • Software Compatibility
  • Barcode Reader Function
  • Temperature Sensor Built-In
  • 21 CFR Part 11
  • Chips Specific to Your Application
  • Minimum Sample Volume - 10 µL
  • Characterization of Newtonian and Non-Newtonian Solutions
  • Wide Viscosity Range:  0.4 - 100,000 mPa-s (or cP)
  • Temperature Specification of 4°C - 70°C*
    • High Temperature Option: Up to 100 °C.
  • Accuracy up to 2% of Reading
  • Repeatable Measurement up to 0.5% of Reading
  • Compatible chips can be easily swapped out and automatically cleaned with the RheoSense Chip Cleaning Station
